Width:
38 (Without Holster) mm, 44 (With Holster) mm
Height:
158 (Without Holster) mm, 164 (With Holster) mm
Length:
76 (without Holster) mm, 82 (with Holster) mm
Weight:
400g
True RMS:
Yes
Calibrated:
RSCAL
Dimensions:
76 x 38 x 158 (without Holster) mm, 82 x 44 x 164 (with Holster) mm
Battery Type:
9V, IEC 6F22, NEDA 1604
Display Type:
Digital
Model Number p:

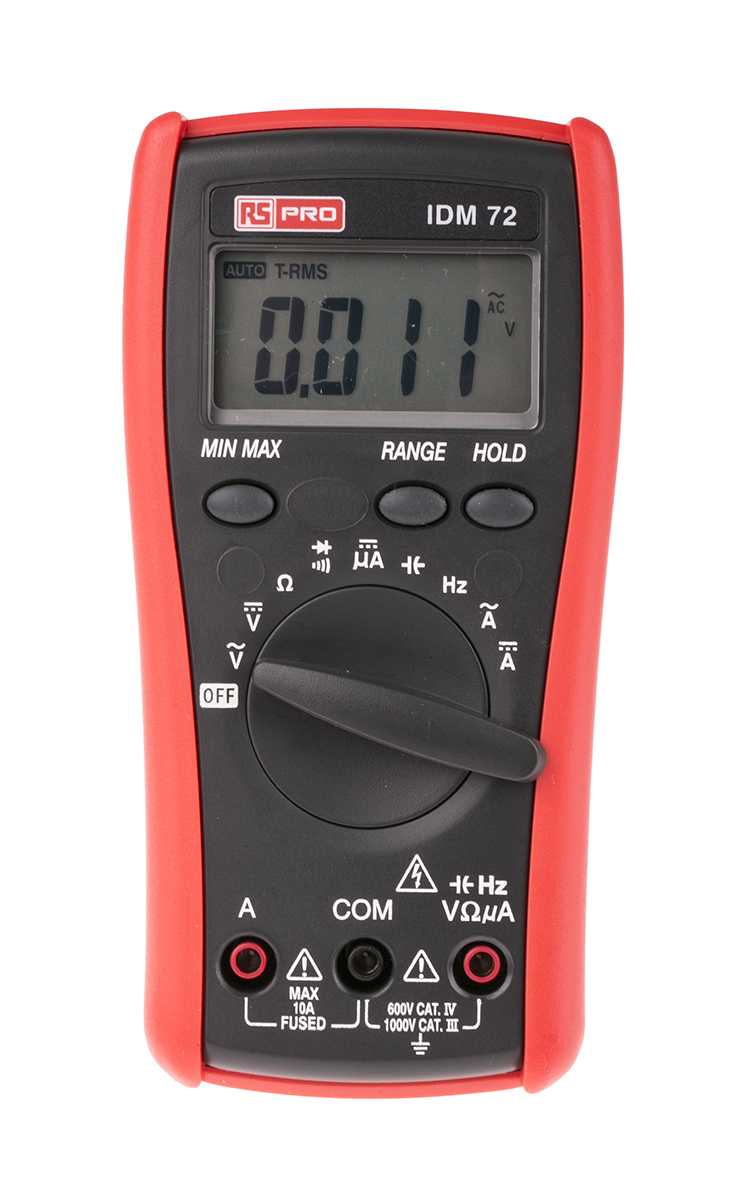

IDM72
Multimeter Type:
Handheld
Maximum Frequency:
60MHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Resistance
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±1.5% + 5 Digits
Best AC Voltage Accuracy:
±0.9% + 5 Digits
Best DC Current Accuracy:
±1% + 2 Digits
Best DC Voltage Accuracy:
±0.5% + 2 Digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.1µA ac
AC Voltage Measurement Resolution:
0.1mV ac
DC Current Measurement Resolution:
0.1µA dc
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
1pF
Best Resistance Measurement Accuracy:
±0.7% + 2 Digits
Best Capacitance Measurement Accuracy:
±1.9% + 8 Digits
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum Capacitance Measurement:
6mF
