Width:
261mm
Height:
104mm
Length:
374mm
Weight:
5.7kg
Dimensions:
104 x 261 x 374mm
Battery Type:
Li-Ion
Connectivity:
USB
Display Type:
4.3 in TFT
Model Number p:

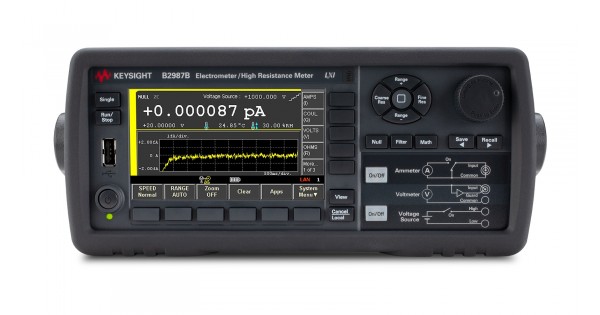

B2987B
Multimeter Type:
Bench
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Best AC Current Accuracy:
± (1 % + 3 fA)
Best AC Voltage Accuracy:
± (0.025 % + 40 μV)
Best DC Current Accuracy:
± (1 % + 3 fA)
Best DC Voltage Accuracy:
± (0.025 %+ 40 μV)
Maximum Operating Temperature:
+45°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
1A ac
AC Voltage Measurement Resolution:
1µV
DC Current Measurement Resolution:
1A
DC Voltage Measurement Resolution:
1µV
Resistance Measurement Resolution:
1Ω
Best Resistance Measurement Accuracy:
± (0.135 % + 1 ?)
Best Temperature Measurement Accuracy:
± (0.2 % + 2 °C)
Absolute Maximum AC Current Measurement:
20mA ac
Absolute Maximum AC Voltage Measurement:
20V ac
Absolute Maximum DC Current Measurement:
20mA dc
Absolute Maximum DC Voltage Measurement:
20V dc
Absolute Maximum Resistance Measurement:
10PΩ
Absolute Maximum Temperature Measurement:
+45°C
