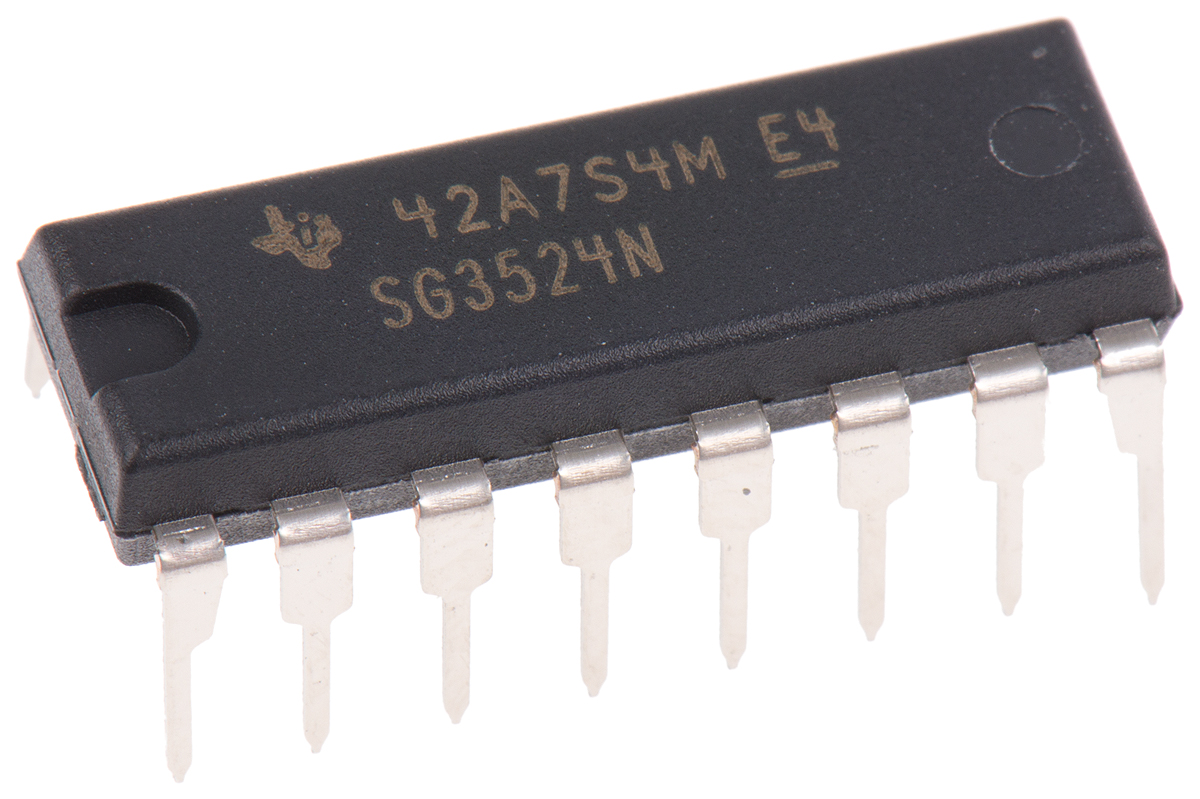

Texas Instruments SG3524N, Dual PWM Controller, 40 V, 450 kHz 16-Pin, PDIP

SG3524N Texas Instruments , Dual PWM Controller, 40 V, 450 kHz 16-Pin, PDIP
SG3524N
SG3524N Texas Instruments , Dual PWM Controller, 40 V, 450 kHz 16-Pin, PDIP
Texas Instruments

Product Information

Width:
6.35mm
Height:
4.57mm
Length:
19.3mm
Topology:
Boost, Buck, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull
Fall Time:
100ns
Pin Count:
16
Rise Time:
200ns
Dimensions:
19.3 x 6.35 x 4.57mm
Package Type:
PDIP
Mounting Type:
Through Hole
Control Method:
Voltage
Output Current:
100 mA
Number of Outputs:
2
Maximum Duty Cycle:
45%
PWM Controller Type:
Voltage Mode
Maximum Switching Frequency:
450 kHz
Maximum Operating Temperature:
+70 °C
Minimum Operating Temperature:
0 °C
Maximum Operating Supply Voltage:
40 V
Minimum Operating Supply Voltage:
8 V
RoHs Compliant
325 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
25
£ 0.65
£ 16.25
50
£ 0.56
£ 28.00
125
£ 0.55
£ 68.75
Mfr Part No:
SG3524N
Seller:
Texas Instruments
Origin:
Warranty:
Manufacturer
Data Code:
ET100074277
Order Today!
From: United Kingdom
Est Ship Date: 24 Jul, 2026
Est Fastest Delivery: 27 Jul, 2026

This is Dual PWM Controller 40 V 450 kHz 16-Pin PDIP manufactured by Texas Instruments. The manufacturer part number is SG3524N. Furthermore, the product is 6.35mm wide. In addition, the height is 4.57mm. Its accurate length is 19.3mm. Topology includes boost, buck, flyback, forward, full bridge, half bridge, push-pull. The given dimensions of the product include 19.3 x 6.35 x 4.57mm. The product is available in through hole configuration. Additionally, the product is supplied with 2 outputs. It has a maximum operating temperature of +70 °c. Whereas, the minimum operating temperature of the product is 0 °c.
