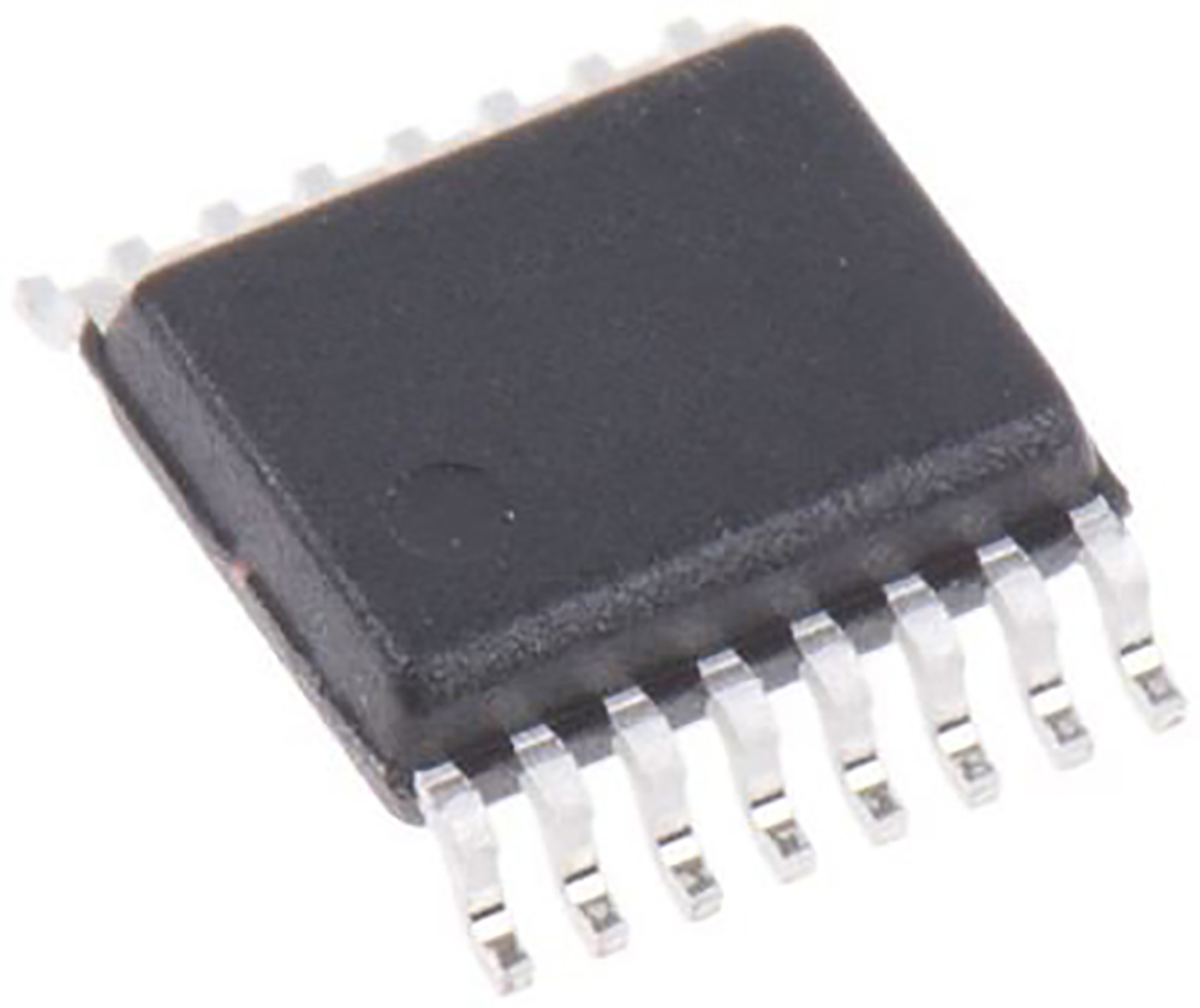

Maxim Integrated MAX1847EEE+, PWM Controller, 16.5 V, 500 kHz 16-Pin, QSOP

Enrgtech Part No: ET11288025
|
Manufacturer Part No:
MAX1847EEE+
|
Manufacturer: Maxim Integrated

MAX1847EEE+ Maxim Integrated , PWM Controller, 16.5 V, 500 kHz 16-Pin, QSOP

(0)

Product Information

Width:

3.99mm

Height:

1.651mm

Length:

4.98mm

Topology:

Flyback

Fall Time:

200ns

Pin Count:

Rise Time:

200ns

Dimensions:

4.98 x 3.99 x 1.651mm

Package Type:

QSOP

Mounting Type:

Surface Mount

Control Method:

Current

Output Current:

5 A

8 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 6.25

£ 12.50

Mfr Part No:

MAX1847EEE+

Seller:

Maxim Integrated

Origin:

Warranty:

Manufacturer

Data Code:

ET11288025

Order Today!

From: United Kingdom

Est Ship Date: 15 Jul, 2026

Est Fastest Delivery: 16 Jul, 2026

Quantity Quantity

This is PWM Controller 16.5 V 500 kHz 16-Pin QSOP manufactured by Maxim Integrated. The manufacturer part number is MAX1847EEE+. Furthermore, the product is 3.99mm wide. In addition, the height is 1.651mm. Its accurate length is 4.98mm. Topology includes flyback. The given dimensions of the product include 4.98 x 3.99 x 1.651mm. The product is available in surface mount configuration. Additionally, the product is supplied with 1 outputs. It has a maximum operating temperature of +85 °c. Whereas, the minimum operating temperature of the product is -40 °c.

0900766b80f6e9e2.pdf(RS)

0900766b80f7030a.pdf(RS)

0900766b814cd105.pdf(RS)
