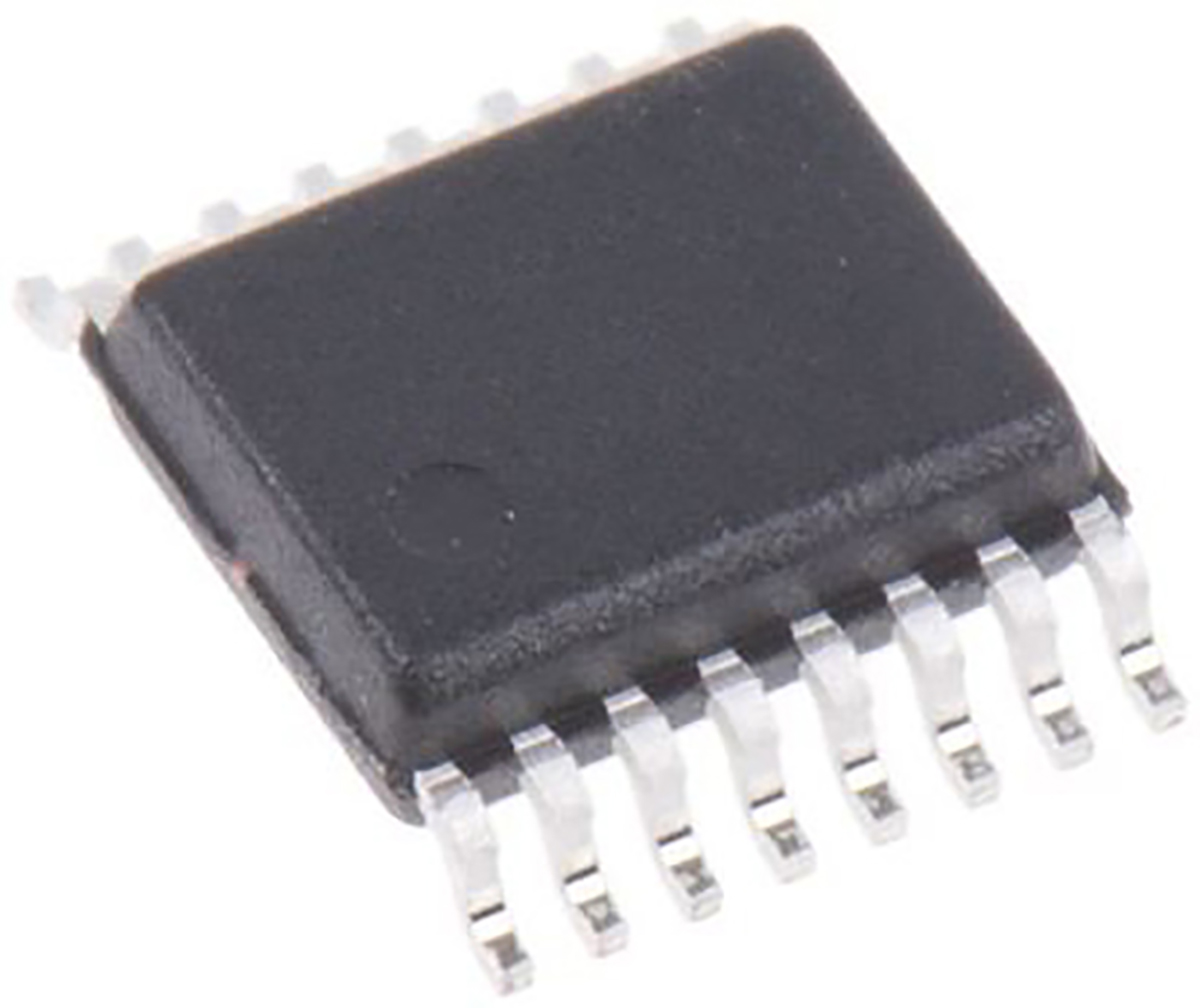

Maxim Integrated MAX1640EEE+, PWM Controller, 26 V, 500 kHz 16-Pin, QSOP

MAX1640EEE+ Maxim Integrated , PWM Controller, 26 V, 500 kHz 16-Pin, QSOP
MAX1640EEE+ Maxim Integrated , PWM Controller, 26 V, 500 kHz 16-Pin, QSOP
Maxim Integrated

Product Information

Width:
3.99mm
Height:
1.651mm
Length:
4.98mm
Topology:
Buck
Pin Count:
16
Dimensions:
4.98 x 3.99 x 1.651mm
Package Type:
QSOP
Mounting Type:
Surface Mount
Control Method:
Current
Output Voltage:
24 V
Number of Outputs:
1
Maximum Duty Cycle:
100%
PWM Controller Type:
Current Mode
Maximum Switching Frequency:
500 kHz
Maximum Operating Temperature:
+85 °C
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
26 V
Minimum Operating Supply Voltage:
5.5 V
RoHs Compliant
60 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
2
£ 5.40
£ 10.80
Mfr Part No:
MAX1640EEE+
Seller:
Maxim Integrated
Origin:
Warranty:
Manufacturer
Data Code:
ET11687264
Order Today!
From: United Kingdom
Est Ship Date: 15 Jul, 2026
Est Fastest Delivery: 16 Jul, 2026

This is PWM Controller 26 V 500 kHz 16-Pin QSOP manufactured by Maxim Integrated. The manufacturer part number is MAX1640EEE+. Furthermore, the product is 3.99mm wide. In addition, the height is 1.651mm. Its accurate length is 4.98mm. Topology includes buck. The given dimensions of the product include 4.98 x 3.99 x 1.651mm. The product is available in surface mount configuration. Additionally, the product is supplied with 1 outputs. It has a maximum operating temperature of +85 °c. Whereas, the minimum operating temperature of the product is -40 °c.
