Texas Instruments UCC35701D, PWM Controller, 700 kHz 14-Pin, SOIC

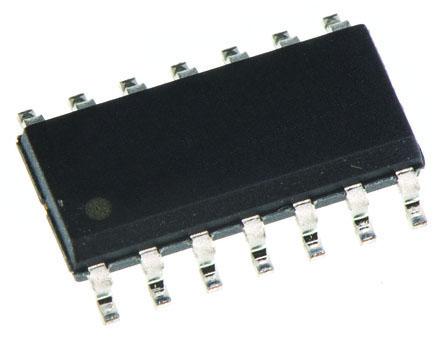

UCC35701D Texas Instruments , PWM Controller, 700 kHz 14-Pin, SOIC
UCC35701D Texas Instruments , PWM Controller, 700 kHz 14-Pin, SOIC
Texas Instruments

Product Information

Width:
3.91mm
Height:
1.58mm
Length:
8.65mm
Topology:
Boost, Buck, Flyback, Forward
Fall Time:
20ns
Pin Count:
14
Rise Time:
20ns
Dimensions:
8.65 x 3.91 x 1.58mm
Package Type:
SOIC
Mounting Type:
Surface Mount
Control Method:
Voltage
Output Current:
1 A
Number of Outputs:
1
Maximum Duty Cycle:
100%
PWM Controller Type:
Voltage Mode
Maximum Switching Frequency:
700 kHz
Maximum Operating Temperature:
+70 °C
Minimum Operating Temperature:
0 °C
RoHs Compliant
7 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
1
£ 10.92
£ 10.92
10
£ 8.65
£ 86.50
50
£ 7.92
£ 396.00
Mfr Part No:
UCC35701D
Seller:
Texas Instruments
Origin:
Warranty:
Manufacturer
Data Code:
ET100926830
Order Today!
From: United Kingdom
Est Ship Date: 15 Jul, 2026
Est Fastest Delivery: 16 Jul, 2026

This is PWM Controller 700 kHz 14-Pin SOIC manufactured by Texas Instruments. The manufacturer part number is UCC35701D. Furthermore, the product is 3.91mm wide. In addition, the height is 1.58mm. Its accurate length is 8.65mm. Topology includes boost, buck, flyback, forward. The given dimensions of the product include 8.65 x 3.91 x 1.58mm. The product is available in surface mount configuration. Additionally, the product is supplied with 1 outputs. It has a maximum operating temperature of +70 °c. Whereas, the minimum operating temperature of the product is 0 °c.

pdf icon
0900766b81644fc9.pdf(RS)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search UCC35701D on website for other similar products.
We accept all major payment methods for all products including ET100926830. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with UCC35701D directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PWM category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments UCC35701D, PWM Controller, 700 kHz 14-Pin, SOIC. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments UCC35701D, PWM Controller, 700 kHz 14-Pin, SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET100926830 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number UCC35701D.
Yes. You can also search UCC35701D on website for other similar products.
Yes. We ship UCC35701D Internationally to many countries around the world.
