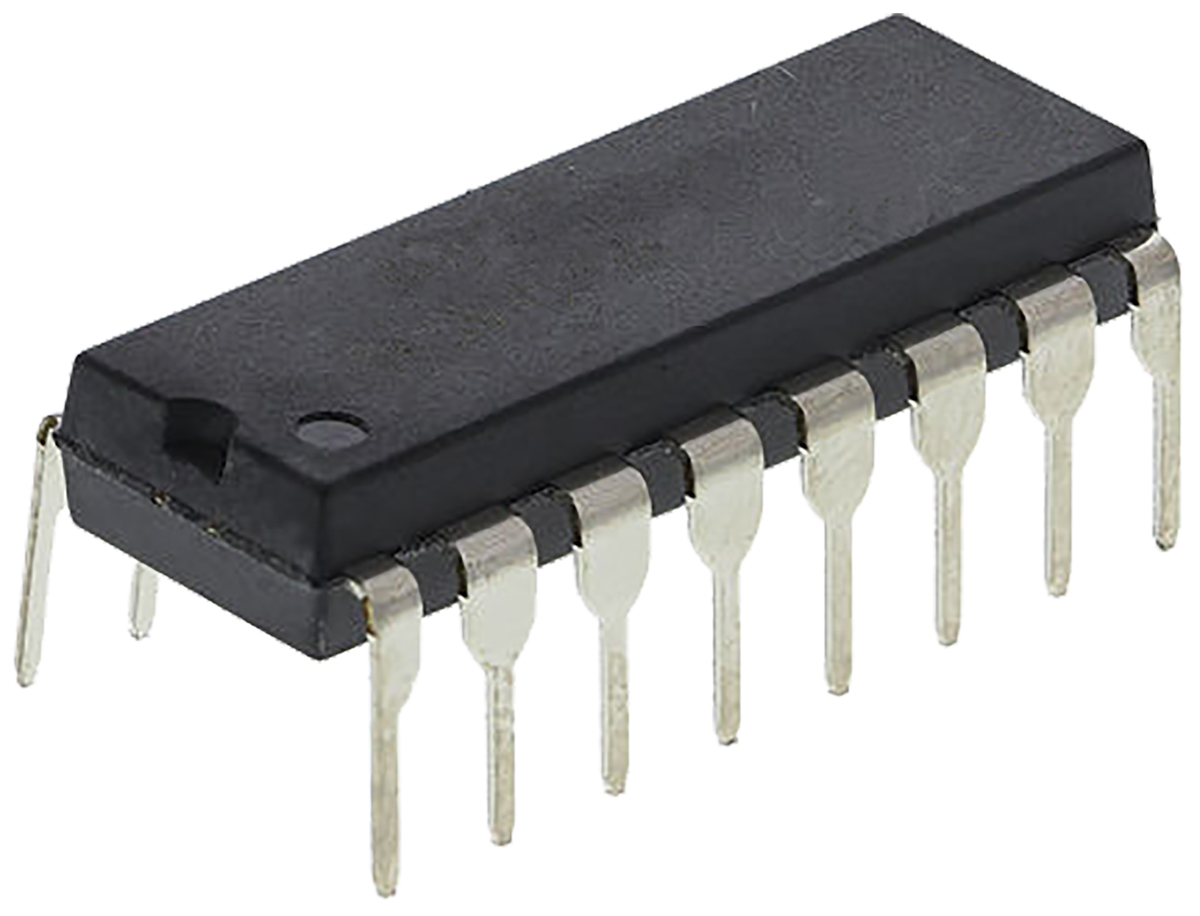

Texas Instruments UC3823AN, Dual PWM Controller, 1000 kHz 16-Pin, PDIP

UC3823AN Texas Instruments , Dual PWM Controller, 1000 kHz 16-Pin, PDIP
UC3823AN
UC3823AN Texas Instruments , Dual PWM Controller, 1000 kHz 16-Pin, PDIP
Texas Instruments

Product Information

Width:
6.35mm
Height:
4.57mm
Length:
19.3mm
Topology:
Boost, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull
Fall Time:
20ns
Pin Count:
16
Rise Time:
20ns
Dimensions:
19.3 x 6.35 x 4.57mm
Package Type:
PDIP
Mounting Type:
Through Hole
Control Method:
Current, Voltage
Output Current:
2 A
Number of Outputs:
2
Maximum Duty Cycle:
100%
PWM Controller Type:
Current Mode
Maximum Switching Frequency:
1000 kHz
Maximum Operating Temperature:
+70 °C
Minimum Operating Temperature:
0 °C
RoHs Compliant
Pre-order

Estimated Lead Time: 7-13 weeks

Each

Quantity
Unit Price (ex VAT)
Price
1
£ 35.41
£ 35.41
5
£ 33.60
£ 168.00
10
£ 30.46
£ 304.60
Mfr Part No:
UC3823AN
Seller:
Texas Instruments
Origin:
Warranty:
Manufacturer
Data Code:
ET11185127
Order Today!
From: United Kingdom

This is Dual PWM Controller 1000 kHz 16-Pin PDIP manufactured by Texas Instruments. The manufacturer part number is UC3823AN. Furthermore, the product is 6.35mm wide. In addition, the height is 4.57mm. Its accurate length is 19.3mm. Topology includes boost, flyback, forward, full bridge, half bridge, push-pull. The given dimensions of the product include 19.3 x 6.35 x 4.57mm. The product is available in through hole configuration. Additionally, the product is supplied with 2 outputs. It has a maximum operating temperature of +70 °c. Whereas, the minimum operating temperature of the product is 0 °c.
