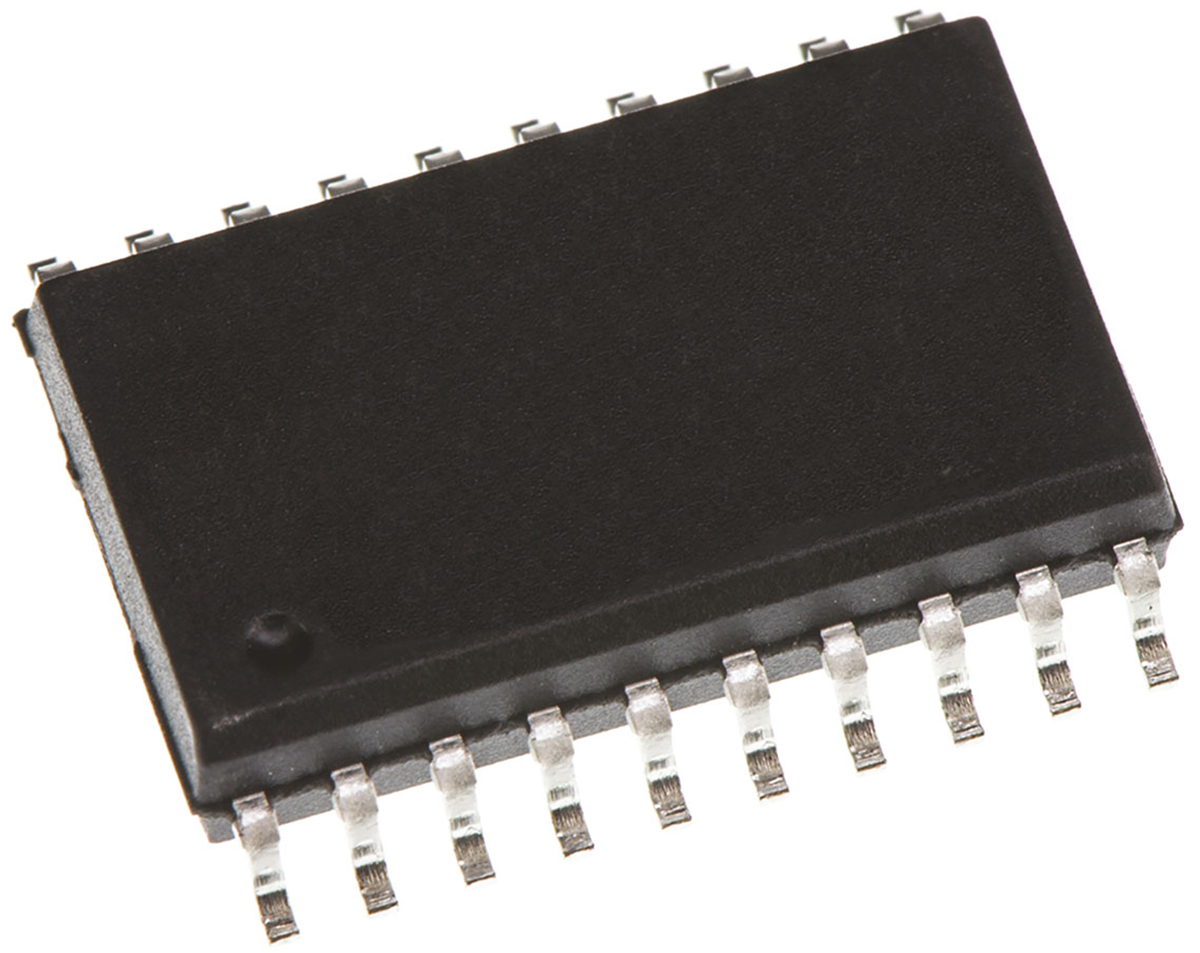

Texas Instruments UCC28513DW, PWM Controller, 18 V, 230 kHz 20-Pin, SOIC

UCC28513DW Texas Instruments , PWM Controller, 18 V, 230 kHz 20-Pin, SOIC
UCC28513DW Texas Instruments , PWM Controller, 18 V, 230 kHz 20-Pin, SOIC
Texas Instruments

Product Information

Pin Count:
20
Dimensions:
12.8 x 7.52 x 2.35mm
Package Type:
SOIC
Mounting Type:
Surface Mount
Start-up Supply Current:
0.1mA
Maximum Switching Frequency:
230 kHz
Maximum Operating Temperature:
+150 °C
Minimum Operating Temperature:
-55 °C
Maximum Operating Supply Voltage:
18 V
RoHs Compliant
1 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
1
£ 4.77
£ 4.77
25
£ 3.72
£ 93.00
100
£ 3.49
£ 349.00
Mfr Part No:
UCC28513DW
Seller:
Texas Instruments
Origin:
Warranty:
Manufacturer
Data Code:
ET13961089
Order Today!
From: United Kingdom
Est Ship Date: 15 Jul, 2026
Est Fastest Delivery: 16 Jul, 2026

This is PWM Controller 18 V 230 kHz 20-Pin SOIC manufactured by Texas Instruments. The manufacturer part number is UCC28513DW. The given dimensions of the product include 12.8 x 7.52 x 2.35mm. The product is available in surface mount configuration. It has a maximum operating temperature of +150 °c. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
0900766b81644fc8.pdf(RS)
