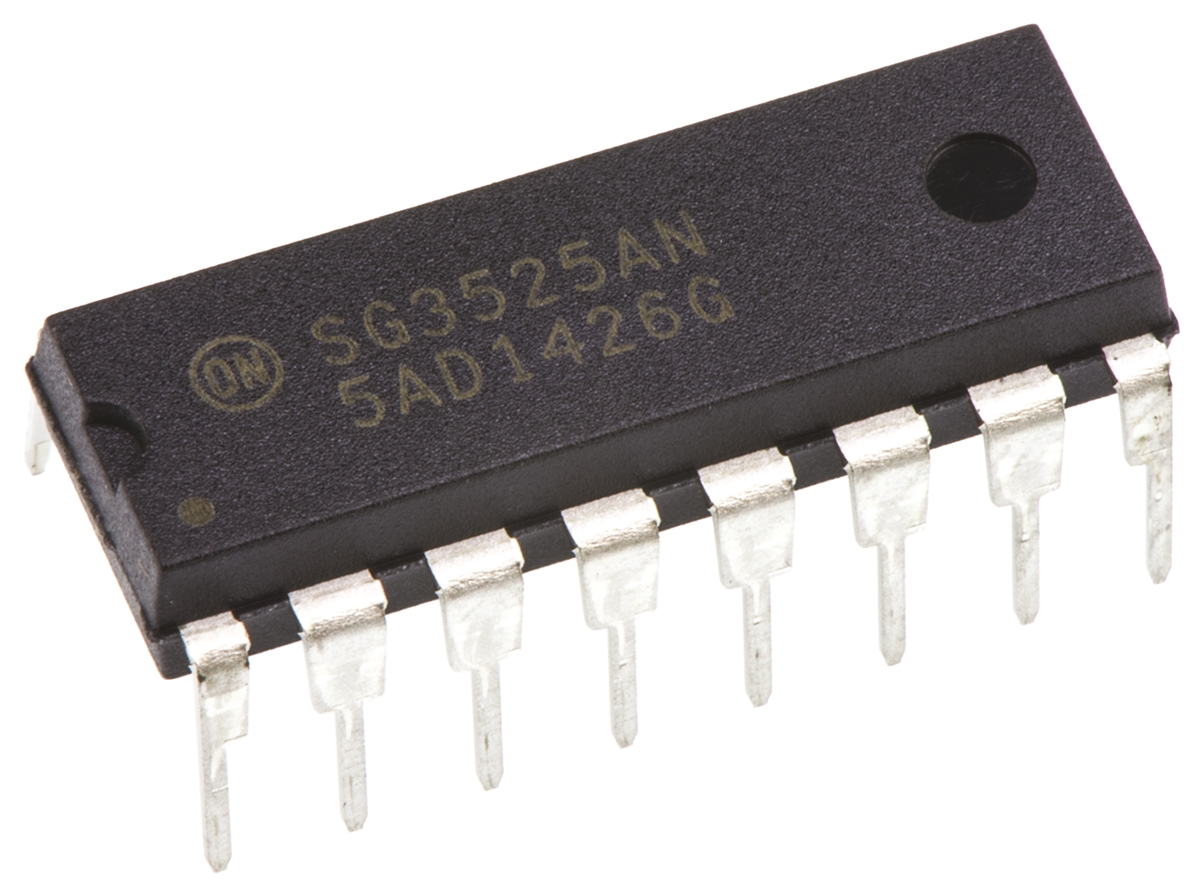

onsemi SG3525ANG, Dual PWM Controller, 35 V, 400 kHz 16-Pin, PDIP

SG3525ANG onsemi , Dual PWM Controller, 35 V, 400 kHz 16-Pin, PDIP
SG3525ANG
SG3525ANG onsemi , Dual PWM Controller, 35 V, 400 kHz 16-Pin, PDIP
Onsemi

Product Information

Width:
6.85mm
Height:
3.43mm
Length:
19.55mm
Fall Time:
50ns
Pin Count:
16
Rise Time:
100ns
Dimensions:
19.55 x 6.85 x 3.43mm
Package Type:
PDIP
Mounting Type:
Through Hole
Control Method:
Voltage
Output Current:
400 mA
Number of Outputs:
2
Maximum Duty Cycle:
49%
PWM Controller Type:
Voltage Mode
Maximum Switching Frequency:
400 kHz
Maximum Operating Temperature:
+70 °C
Minimum Operating Temperature:
0 °C
Maximum Operating Supply Voltage:
35 V
Minimum Operating Supply Voltage:
8 V
RoHs Compliant
150 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
25
£ 0.79
£ 19.75
100
£ 0.54
£ 54.00
500
£ 0.51
£ 255.00
Mfr Part No:
SG3525ANG
Seller:
Onsemi
Origin:
Warranty:
Manufacturer
Data Code:
ET21455646
Order Today!
From: United Kingdom
Est Ship Date: 15 Jul, 2026
Est Fastest Delivery: 16 Jul, 2026

This is onsemi Dual PWM Controller 35 V 400 kHz 16-Pin PDIP manufactured by Onsemi. The manufacturer part number is SG3525ANG. Furthermore, the product is 6.85mm wide. In addition, the height is 3.43mm. Its accurate length is 19.55mm. The given dimensions of the product include 19.55 x 6.85 x 3.43mm. The product is available in through hole configuration. Additionally, the product is supplied with 2 outputs. It has a maximum operating temperature of +70 °c. Whereas, the minimum operating temperature of the product is 0 °c.
